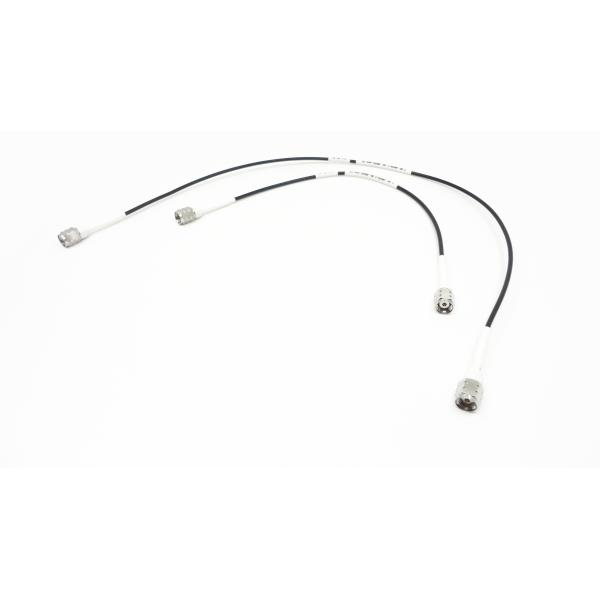

1.85mm MMW Series Male RF Stainless Steel Plugs For Soft RF Cable Assembly 200 / 400 Mm

  • 1
  • 2
  • 3

Brand Name : ELT

Model Number : 1.85-J865G/1.85-J865G-200/400

Certification : ROHS ISO-9001-2015

Place of Origin : China

MOQ : 20pcs

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 35000pcs/year

Delivery Time : Within 3 weeks

Packaging Details : Standard Export Carton

Item : Millimeter Wave Cable Assembly

Gender : Male

Material : Stainless Steel

Keywords : 1.85 mm MMW Connectors

Plating : Passivated

Application : RF

Body Style : Straight

Contact Now

1.85mm MMW Series Male RF Stainless Steel Plugs for RF Cable Assembly, L=200/400 mm

The 1.85mm connector is a state-of-the-art millimeter wave connector with a usage frequency that can reach up to 67 GHz. It utilizes an air interface and threaded connection, making it interchangeable with the 2.4mm connector. This connector boasts the benefits of compactness, lightweight design, high operational frequency, and dependable connectivity. It is widely employed in high-frequency microwave measurements and millimeter wave devices.

1.85mm MMW Series Male RF Stainless Steel Plugs For Soft RF Cable Assembly 200 / 400 Mm

Specification:

Electronic and Material Characterials
Impedance 50Ohm
Frequency Range DC~67GHz
Rated Voltage 170 VRMS (Maximum sea-level)
Dielectrics Voltage-resistance 500 VRMS (Maximum sea-level)
VSWR ≤1.3
Insulation Resistance ≥5000MΩ
Center conductor Male

Beryllium bronze gold plated
Female Beryllium bronze gold plated
Shell and other metal parts

Brass /stainless Stain gold plated /passivated
Insulator PEI/PLF
Seal ring Silicon rubber
Mating torque 0.79 -1.13 N.m

More Pictures of 1.85mm MMW Series Male RF Stainless Steel Plugs for RF Cable Assembly, L=200/400 mm:

1.85mm MMW Series Male RF Stainless Steel Plugs For Soft RF Cable Assembly 200 / 400 Mm

Application:

Network Satcom
Computer/LANs Computer/LANs
Mobile communication Instrumentation
Base Station Mobile communication
Outdoor facilities Radar,microwave
Telecommunications Instrumentation
Automotive Jump line join
Basic facility Radio, TV aerial system


1.85mm MMW Series Male RF Stainless Steel Plugs For Soft RF Cable Assembly 200 / 400 Mm
